Description
Parameters
Material
Quartz glass
Pyrex glass
Tempax glass
?
Features
Small size
high coupling efficiency
high reliability
good high temperature stability
Parameters | Unit | specifications |
Operating?wavelength | --- | 1310&1550/850 |
Channel?Number | --- | 4/8/16/32/48/64/128 |
Core?pitch?toerance | um | ±0.5 |
Polishing?length?toerance | mm | ±0.3 |
Width? | mm | ±0.1 |
Height | mm | ±0.1 |
Polishing?Angle?toerance | ° | ±0.3/0.5 |
Polishing?top?Angle?toerance | ° | ±0.5 |
Insertion?Loss | dB | ≤0.3 |
Return?Loss | dB | ≥55 |
Operating?temperature | ℃ | -40?-?85 |
Parameters | Unit | specifications（min） | specifications（max） |
Lid?size | mm | L1.5?/W0.5?/H0.17 | L15?/?W22?/H2 |
V-?groove?size | mm | L2.0?/W0.5?/H0.5 | L20?/?W22?/H2 |
Bare?fiber?protrusion?length | mm | 0.2±0.05 | 0.2±0.1 |
Core?pitch | um | 250um±0.3um | 250um±1.0um |
Bare?fiber?degree | ° | 0°/8°/42.5°/45°±0.3 | 0°/8°/42.5°/45°±0.3 |
Total?length | mm | ±0.3 | NA |
IL?of?FA?side?FA | dB | ≤0.3 | |
IL?of?MT?side | dB | ≤0.3 | |
Uniformity?of  | |||

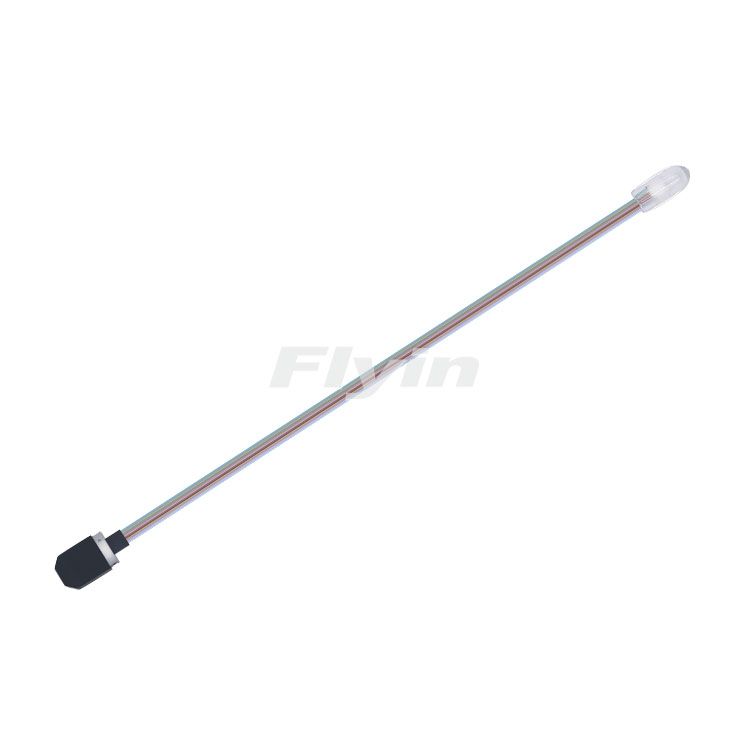

Flyin FA-MT with high transmission rate, low comsuption, high stability and reliability. FA can be customized. Flyin has NACHI SM1515AP cutting equipment and YGN-590RSM-FA (Yagishita Giken) Core pitch measuring equipment. By optimizing design and precision machining processes, FA-MT can achieve better coupling transmission efficiency, ensure product stability and reliability, and bring better user experience.
Material
Quartz glass
Pyrex glass
Tempax glass
?
Features
Small size
high coupling efficiency
high reliability
good high temperature stability
Parameters | Unit | specifications |
Operating?wavelength | --- | 1310&1550/850 |
Channel?Number | --- | 4/8/16/32/48/64/128 |
Core?pitch?toerance | um | ±0.5 |
Polishing?length?toerance | mm | ±0.3 |
Width? | mm | ±0.1 |
Height | mm | ±0.1 |
Polishing?Angle?toerance | ° | ±0.3/0.5 |
Polishing?top?Angle?toerance | ° | ±0.5 |
Insertion?Loss | dB | ≤0.3 |
Return?Loss | dB | ≥55 |
Operating?temperature | ℃ | -40?-?85 |
Parameters | Unit | specifications（min） | specifications（max） |
Lid?size | mm | L1.5?/W0.5?/H0.17 | L15?/?W22?/H2 |
V-?groove?size | mm | L2.0?/W0.5?/H0.5 | L20?/?W22?/H2 |
Bare?fiber?protrusion?length | mm | 0.2±0.05 | 0.2±0.1 |
Core?pitch | um | 250um±0.3um | 250um±1.0um |
Bare?fiber?degree | ° | 0°/8°/42.5°/45°±0.3 | 0°/8°/42.5°/45°±0.3 |
Total?length | mm | ±0.3 | NA |
IL?of?FA?side?FA | dB | ≤0.3 | |
IL?of?MT?side | dB | ≤0.3 | |
Uniformity?of  | |||
