Description
Parameters
| Features | Application |
| Low insertion loss and?High return loss | Fiber laser |
| High extinction ration | CWDM/DWDM/OADM communication system |
| Low adjustment precision | Optical transmission system |
| High stability and reliability |
| Parameter | Specification |
| Center Wavelength (nm)? | 1550 |
| Operation?Wavelength Range?(nm) | ±40 |
| Max. Attnuation?(dB) | 0.8~60 |
| Min. Insertion Loss?(dB) | ≤1.1 |
| Return Loss (dB) | ≥50 |
| Extinction Ratio?(dB) | ≥18 |
| Fiber Type | PM1550 ，900μm loose tube |
| Connector Type | FC/APC |
| Package Dimensions（mm） | 26x18x8 |
| Max. Power（mW） | 300 |
| Fiber Length（m） | 1 |
| Max. Tensile Load（N） | 5 |
| Operation Temperature (℃) | -0~ +70 |
| Storage?Temperature? (℃) | -40 ~ +80 |

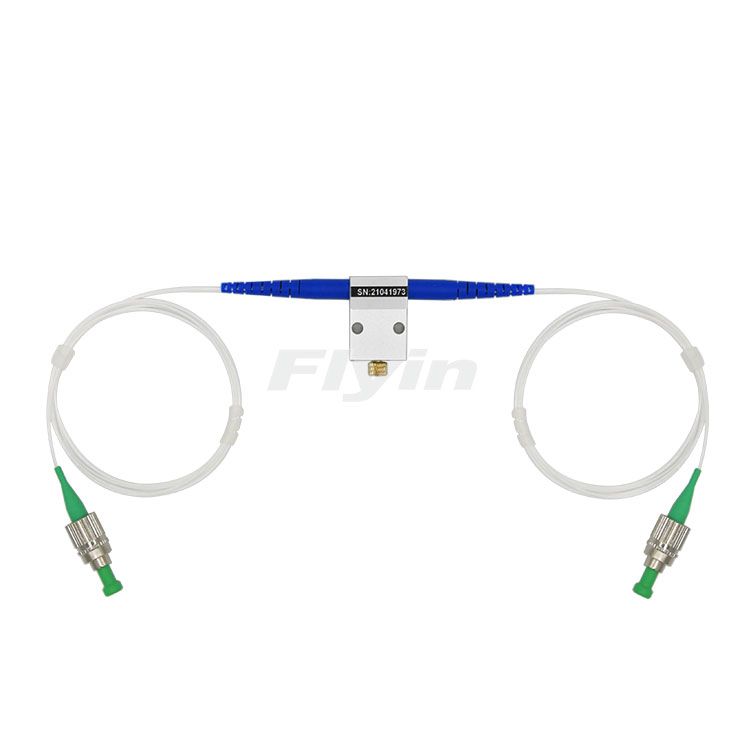

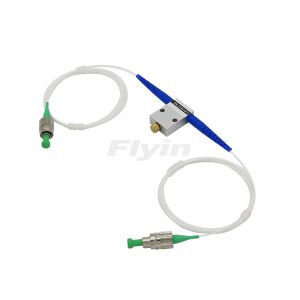

Flyin PM Manual Variable Optical Attenuator is designed and manufactured to reduce the output optical power, get the power suitable.
| Features | Application |
| Low insertion loss and?High return loss | Fiber laser |
| High extinction ration | CWDM/DWDM/OADM communication system |
| Low adjustment precision | Optical transmission system |
| High stability and reliability |
| Parameter | Specification |
| Center Wavelength (nm)? | 1550 |
| Operation?Wavelength Range?(nm) | ±40 |
| Max. Attnuation?(dB) | 0.8~60 |
| Min. Insertion Loss?(dB) | ≤1.1 |
| Return Loss (dB) | ≥50 |
| Extinction Ratio?(dB) | ≥18 |
| Fiber Type | PM1550 ，900μm loose tube |
| Connector Type | FC/APC |
| Package Dimensions（mm） | 26x18x8 |
| Max. Power（mW） | 300 |
| Fiber Length（m） | 1 |
| Max. Tensile Load（N） | 5 |
| Operation Temperature (℃) | -0~ +70 |
| Storage?Temperature? (℃) | -40 ~ +80 |
