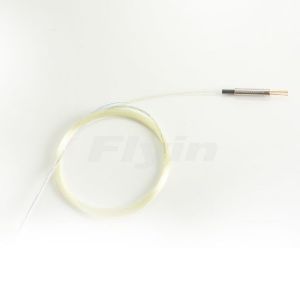

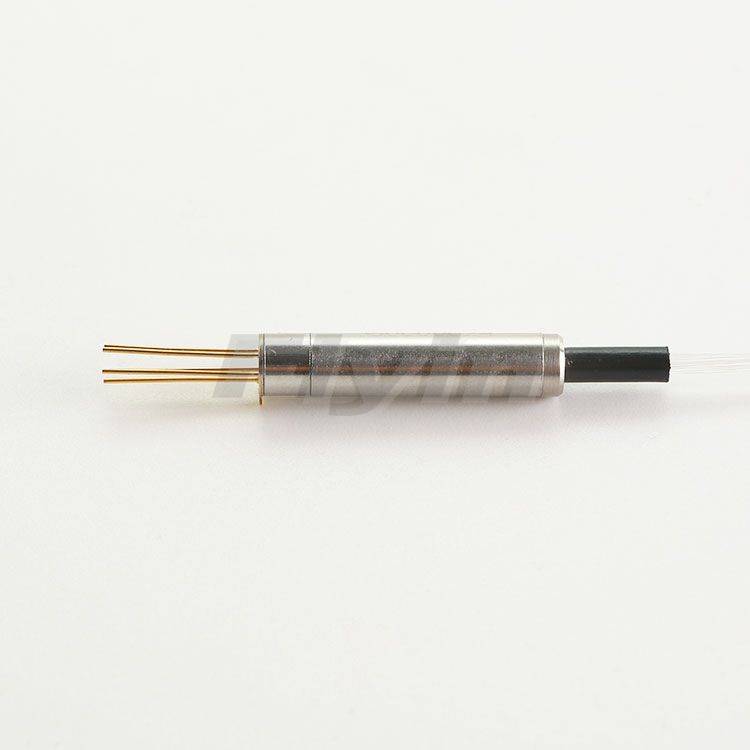

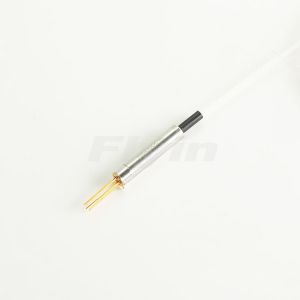

Description
Parameters
Features??????????????????Applications
?????Low Insertion Loss?&?Low PDL????????????? ?Fiber communication?System????????????????????????????????????????????????????????
?????Low Power Consumption????????????????? ?Optical component testing????
?????High switching speed???????????????? ? ?Fiber sensing?System
?????Insensitive to Shock and Vibration????????????????????????????????????????????? ??Channel Monitor
?????High Reliability and Stability???????????????????????????????? ? ? ?????????????????????? ? ? ?Matrix Optical Switch
?
?![D(~C@~%4JW]8ECNJTZT9QS8.png](http://www.lmbpr.com/ueditor/php/upload/image/20190821/1566376025333584.png "1566376025333584.png")
?
?
??????????????????
?
Specifications
Parameter | Specification | Unit | Note |
Wavelength Range | 1525~1620 | nm | |
Insertion Loss | 1.5 & 2.0 | dB | @1x8& @1x16 |
Crosstalk | ≥50 | dB | For Single Mode |
Return?loss | ≥45 | dB | For Single Mode |
Switching time | ≤5 | ms | Typical 1.0 |
Polarization Dependent Loss? | ≤0.2 | dB | |
Wavelength Dependent Loss | ≤0.3 | dB | @<0 dB Att. |
Return?loss | ≥45 | dB | For Single Mode |
Optical Power Handing | 500 | mW | |
Driving Voltage | 60 | V | |
Power Consumption | ≤2 | mW | |
Operation Temperature | 0~70 | ℃ | |
Storage Temperature | -40~85 | ℃ | |
Dimension (mm) ?(Φ×L) | Φ5.5*L34 | mm |
Notes:?1. Specified without connectors.??2. Add an additional 0.2dB loss per connector.
?
?
Ordering information
MEOS | _ | xx | xx | x | x | x | x | _ | xx | x |
ME=MEMS O=Optical S=Switch | Port Configuration | Voltage Type | Switch Type | Wavelength | Fiber Type | Pigtail Type | Fiber Length | Connector | ||
? 02=1x2 04=1x4 16=1x16 ? | 03=3V 60=60V | N=Non-Latching ? | 1=1310nm 2=1550nm 3=1260~1620nm 4=850 | 1=SMF-28 2=MM50/125 3=62.5/125 X=Special | B=bare fiber L=loose Tube | 05=0.5m 10=1.0m 15=1.5m | 0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC |
?
Features??????????????????Applications
?????Low Insertion Loss?&?Low PDL????????????? ?Fiber communication?System????????????????????????????????????????????????????????
?????Low Power Consumption????????????????? ?Optical component testing????
?????High switching speed???????????????? ? ?Fiber sensing?System
?????Insensitive to Shock and Vibration????????????????????????????????????????????? ??Channel Monitor
?????High Reliability and Stability???????????????????????????????? ? ? ?????????????????????? ? ? ?Matrix Optical Switch
?
??
?
??????????????????
?
Specifications
Parameter | Specification | Unit | Note |
Wavelength Range | 1525~1620 | nm | |
Insertion Loss | 1.5 & 2.0 | dB | @1x8& @1x16 |
Crosstalk | ≥50 | dB | For Single Mode |
Return?loss | ≥45 | dB | For Single Mode |
Switching time | ≤5 | ms | Typical 1.0 |
Polarization Dependent Loss? | ≤0.2 | dB | |
Wavelength Dependent Loss | ≤0.3 | dB | @<0 dB Att. |
Return?loss | ≥45 | dB | For Single Mode |
Optical Power Handing | 500 | mW | |
Driving Voltage | 60 | V | |
Power Consumption | ≤2 | mW | |
Operation Temperature | 0~70 | ℃ | |
Storage Temperature | -40~85 | ℃ | |
Dimension (mm) ?(Φ×L) | Φ5.5*L34 | mm |
Notes:?1. Specified without connectors.??2. Add an additional 0.2dB loss per connector.
?
?
Ordering information
MEOS | _ | xx | xx | x | x | x | x | _ | xx | x |
ME=MEMS O=Optical S=Switch | Port Configuration | Voltage Type | Switch Type | Wavelength | Fiber Type | Pigtail Type | Fiber Length | Connector | ||
? 02=1x2 04=1x4 16=1x16 ? | 03=3V 60=60V | N=Non-Latching ? | 1=1310nm 2=1550nm 3=1260~1620nm 4=850 | 1=SMF-28 2=MM50/125 3=62.5/125 X=Special | B=bare fiber L=loose Tube | 05=0.5m 10=1.0m 15=1.5m | 0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC |
?
