Product Description

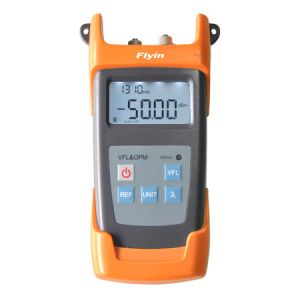

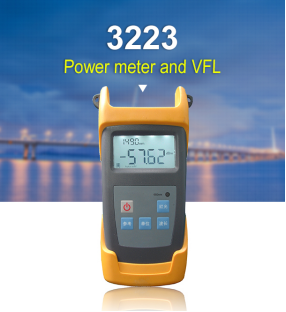

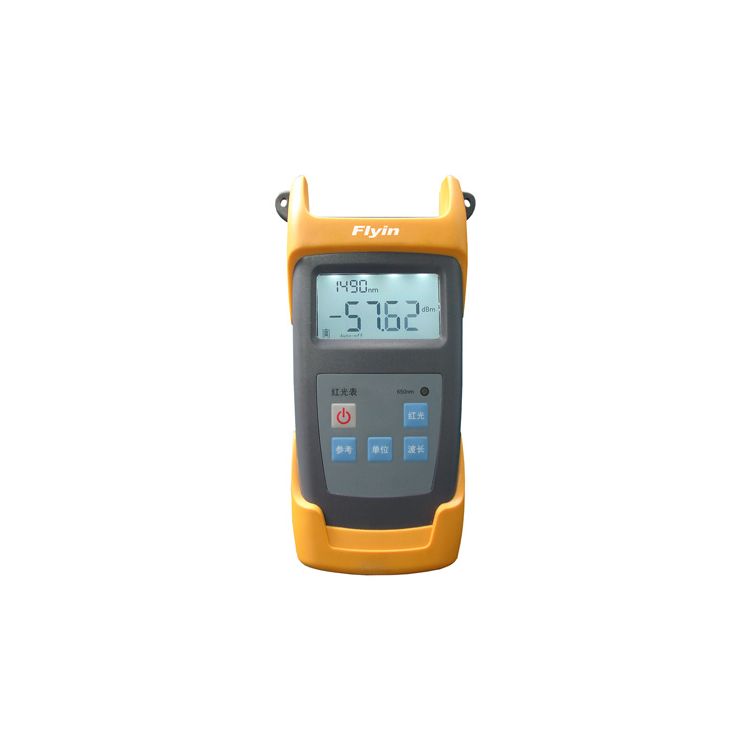

3223 Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss?
measurements and Fiber faults tracing visually.
?
Features
* 3223 VFL Power Meter is an ideal tester used in quickly mechanical splicing
??and FTTx networks.

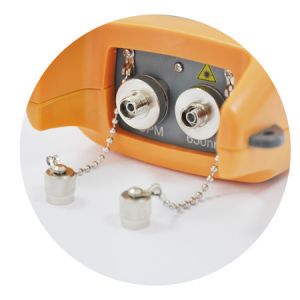

* Optical Port: FC, SC interchangeable supports various optical connectors.
?
Applications
* Maintenance in Telecom
* Maintenance CATV
* Fiber Optic Lab Testing
* Other Fiber Optic Measurements
?
Specifications
Model | 3223 |
Operating wavelength(Power Meter Module) | 850/1300/1310/1490/1550/1625 |
Detector Type | InGaAs |
Out put power(VFL module) | 1mW?or 10mW |
Power Measurement Range | -70~+6dBm????/ ??-50~+26dBm |
Uncertainty | ±0.5dB |
Resolution | 0.01 |
Operation temperature | -10~+60 ℃ |
Storage Temperature | -25~+70℃ |
Auto-off function | Yes, ?Auto-off after 10minutes idle time |
Battery Life @ OPM | 180 hours |
Battery Life @ VFL | 60 hours |
Power Supply | 3pcs AA Batteries |
Weight | 700g (including batteries) |
Size | 192*102*50 |
?
Standard Packages
MODEL | INCLUDES |
All 3223 Models | VFL Power Meter, 3pcs alkaline batteries, User Manual?and Soft carrying case. |
?
3223 Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.
Product Description
3223 Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss?
measurements and Fiber faults tracing visually.
?
Features
* 3223 VFL Power Meter is an ideal tester used in quickly mechanical splicing
??and FTTx networks.
* Optical Port: FC, SC interchangeable supports various optical connectors.
?
Applications
* Maintenance in Telecom
* Maintenance CATV
* Fiber Optic Lab Testing
* Other Fiber Optic Measurements
?
Specifications
Model | 3223 |
Operating wavelength(Power Meter Module) | 850/1300/1310/1490/1550/1625 |
Detector Type | InGaAs |
Out put power(VFL module) | 1mW?or 10mW |
Power Measurement Range | -70~+6dBm????/ ??-50~+26dBm |
Uncertainty | ±0.5dB |
Resolution | 0.01 |
Operation temperature | -10~+60 ℃ |
Storage Temperature | -25~+70℃ |
Auto-off function | Yes, ?Auto-off after 10minutes idle time |
Battery Life @ OPM | 180 hours |
Battery Life @ VFL | 60 hours |
Power Supply | 3pcs AA Batteries |
Weight | 700g (including batteries) |
Size | 192*102*50 |
?
Standard Packages
MODEL | INCLUDES |
All 3223 Models | VFL Power Meter, 3pcs alkaline batteries, User Manual?and Soft carrying case. |
?
