深圳市飛宇光纖系統有限公司

專業光通信無源器件及有源設備制造商

當前位置： >分路器 >PLC光分路器 >PLC Splitter - 迷你型

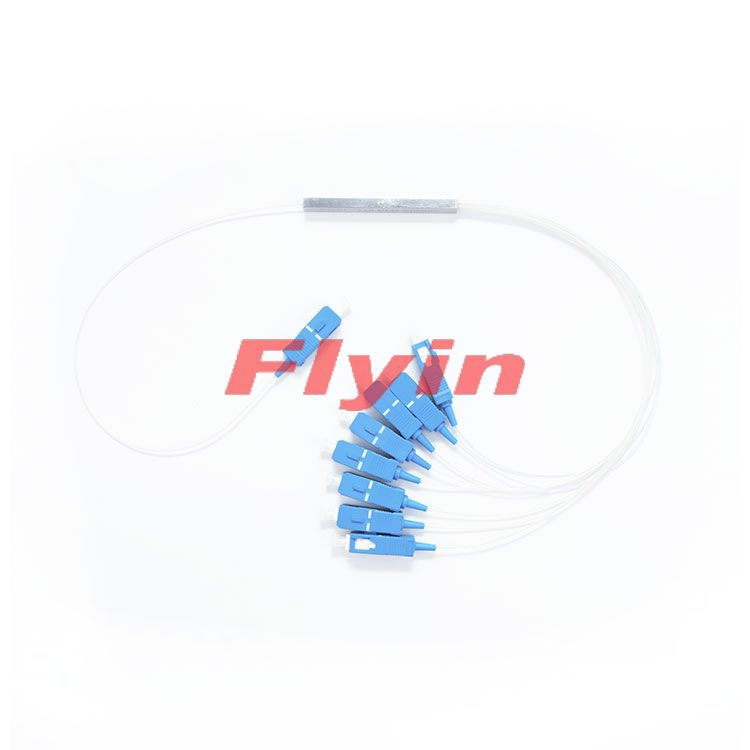

PLC Splitter - 迷你型5cb7e7f7ae24e.jpg

PLC Splitter - 迷你型

平面波導型光分路器（PLC Splitter）是一種基于石英基板集成波導光功率分配器件，具有體積小，工作波長范圍寬，可靠性高，分光均勻性好等特點

型號：
進端纖徑：
進端連接頭：
出端纖徑：
出端纖長：
出端連接頭：
 請至少選擇一個參數！！或者 立即咨詢

相關產品

產品描述

產品參數

FeaturesApplications
Low Insertion lossFTTX Systems
Low PDLPON Networks
Compact DesignCATV Links
Good channel-to-channel uniformityOptical Signal Distribution
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature:From -40℃ to 85℃
High Reliability and Stability



生產車間展示

Specifications 1×N PLC Splitter

Parameters1×21×41×81×161×321×641×128
Operating Wavelength（nm）1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformit（dB）0.40.60.81.21.52.02.5
Polarization Dependent Loss（dB）0.20.20.20.250.30.350.4
Return Loss(dB)（P/S Grade）55/5055/5055/5055/5055/5055/5055/50
Directivity（dB）55555555555555
Wavelength Dependent Loss（dB）0.30.30.30.50.50.50.5
Temperature Stability （-40~85℃）（dB）0.40.40.40.50.50.50.5
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85
Device Dimension（mm）40×4×440×4×440×4×450×7×450×7×460×12×4N/A
Module Dimension（mm）100×80×10120×80×18141×115×18
Mini-Module Dimension（mm）50×7×460×12×480×20×6100×40×6N/A

Specifications 2×N PLC Splitter

Parameters2×22×42×82×162×322×642×128
Operating Wavelength（nm）1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss (dB) P/S Grade）3.9/4/27.3/7.610.5/1114.4/14.617.4/17.921.0/21.524.5/25.0
Loss Uniformity（dB）≤0.6≤1.0≤1.2≤1.5≤1.8≤2.2≤2.5
Polarization Dependent Loss（dB）≤0.2≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4
Return Loss(dB)(P/S Grade)≥55≥55≥55≥55≥55≥55≥55
Directivity（dB）55555555555555
Wavelength Dependent Loss（dB）≤0.3≤0.4≤0.5≤0.5≤0.5≤0.5≤0.5
Fiber Length (m)1.5(±0.1)or customer specified
Temperature Stability（-40~85℃）（dB）≤0.5
Operating Temperature(℃)-20~+75
Storage Temperature(℃)-40~+85
Maximum Power Handling (mW)500

1、The above parameters were measured at room temperature, but not including connectors data.

2、Add an additional 0.2dB loss per connector，Return Loss≥55dB(APC)，≥50dB(UPC).

Bare fiber type:

Item1×21×41×81×161×321×642×22×42×82×162×32
（L*W*H）(mm）40*4*450*7*460*12*460*7*470*7*470*7*4

Mini type:

Item1×21×41×81×161×321×642×22×42×82×162×32
（L*W*H）(mm）60*7*460*12*480*20*6100*40*660*7*480*12*4100*20*6
