深圳市飛宇光纖系統有限公司

專業光通信無源器件及有源設備制造商

當前位置： >光模塊 >10G SFP+ >萬兆光模塊10G SFP+ 60KM Tx1330nm Rx1270nm

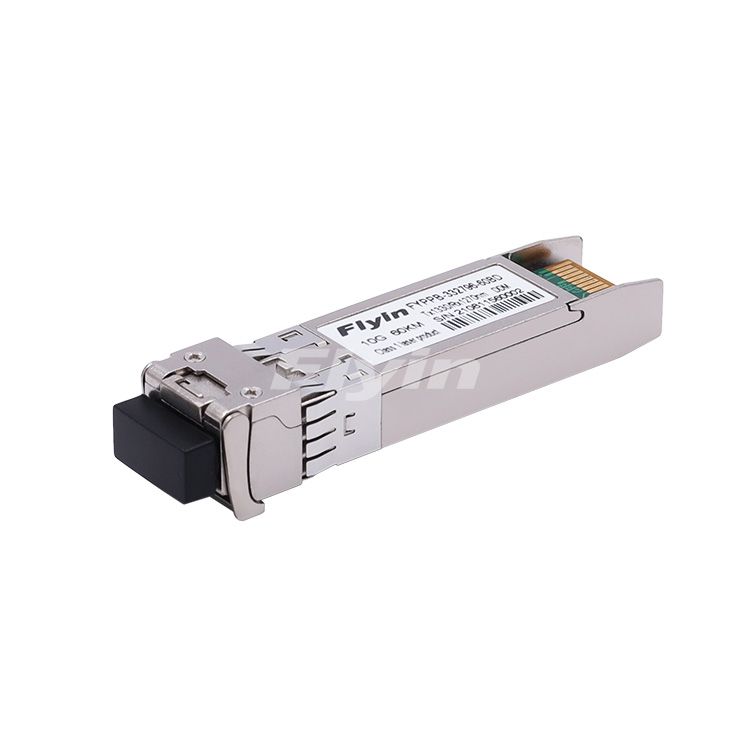

萬兆光模塊10G SFP+ 60KM Tx1330nm Rx1270nm615e4d14e23d2.jpg

萬兆光模塊10G SFP+ 60KM Tx1330nm Rx1270nm

飛宇集團10G SFP+光模塊具有功耗低、體積小、寬溫度范圍等特性。符合符合IEEE 802.3ae標準和SFP MSA等標準協議，主要應用于數據中心、Ethernet以太網/SDH/SONET/光纖通道等環境。

 請至少選擇一個參數??！或者 立即咨詢

相關產品

產品描述

產品參數

10Gb/s SFP+雙纖光模塊

型號速率工作波長傳輸距離發光功率接收靈敏度管芯接口
FYPP-8596-M3B10Gb/s850nm300M-5~-1dBm≤-10dBmVCSELLC
FYPP-1396-02B10Gb/s1310nm2KM-6~-1dBm≤-14.5dBmFPLC
FYPP-1396-10B10Gb/s1310nm10KM-6~-1dBm≤-14.5dBmDFBLC
FYPP-1396-40B10Gb/s1310nm40KM-1~4dBm≤-15.8dBmDFBLC
FYPP-1596-40B10Gb/s1550nm40KM-1~4dBm≤-15.8dBmEMLLC
FYPP-1596-80B10Gb/s1550nm80KM0~5dBm≤-23dBmEMLLC
FYPPC-**96-10B10Gb/s1270nm~1610nm10KM-5~-1dBm≤-14.5dBmDFBLC
FYPPC-**96-40B10Gb/s1270nm~1330nm40KM-1~3dBm≤-15.8dBmDFBLC
FYPPC-**96-40B10Gb/s1470nm~1610nm40KM-1~3dBm≤-15.8dBmEMLLC
FYPPC-**96-80B10Gb/s1470nm~1610nm80KM0~4dBm≤-23dBmEMLLC
FYPPD-**96-40B10Gb/sC17~C6140KM-1~3dBm≤-15.8dBmEMLLC
FYPPD-**96-80B10Gb/sC17~C6180KM0~4dBm≤-23dBmEMLLC

備注：CWDM型號欄**對應波長1270nm~1610nm，DWDM型號欄**對應通道C17(1563.86nm)~C61(1528.77nm)


10Gb/s SFP+單模單纖光模塊

型號速率工作波長傳輸距離發光功率接收靈敏度管芯接口
FYPPB-2396-10B10Gb/sTx1270/Rx1330nm10KM-5~-1dBm≤-14.5dBmDFBLC
FYPPB-3296-10B10Gb/sTx1330/Rx1270nm10KM-5~-1dBm≤-14.5dBmDFBLC
FYPPB-2396-40B10Gb/sTx1270/Rx1330nm40KM0~5dBm≤-15.8dBmDFBLC
FYPPB-3296-40B10Gb/sTx1330/Rx1270nm40KM0~5dBm≤-15.8dBmDFBLC
FYPPB-2396-60B10Gb/sTx1270/Rx1330nm60KM0~5dBm≤-20dBmDFBLC
FYPPB-3296-60B10Gb/sTx1330/Rx1270nm60KM0~5dBm≤-20dBmDFBLC
FYPPB-4596-80B10Gb/sTx1490/Rx1550nm80KM0~5dBm≤-23dBmEMLLC
FYPPB-5496-80B10Gb/sTx1550/Rx1490nm80KM0~5dBm≤-23dBmEMLLC


生產車間展示

10Gb/s SFP+雙纖光模塊

型號速率工作波長傳輸距離發光功率接收靈敏度管芯接口
FYPP-8596-M3BD10Gb/s850nm300M-6~-1dBm≤-10dBmVCSELLC/SC
FYPP-1396-02BD10Gb/s1310nm2KM-6~-0.5dBm≤-14.4dBmFPLC/SC
FYPP-1396-10BD10Gb/s1310nm10KM-6~-0.5dBm≤-14.4dBmDFPLC/SC
FYPP-1596-40BD10Gb/s1550nm40KM-1~3dBm≤-16dBmEMLLC/SC
FYPP-1596-80BD10Gb/s1550nm80KM-1~4dBm≤-23dBmEMLLC/SC
FYPPC-**96-10BD10Gb/s1270nm~1610nm10KM-6~-1dBm≤-15dBmDFPLC/SC
FYPPC-**96-40BD10Gb/s1470nm~1610nm40KM-1~3dBm≤-16dBmEMLLC/SC
FYPPC-**96-80BD10Gb/s1470nm~1610nm80KM-1~4dBm≤-23dBmEMLLC/SC
FYPPD-**96-40BD10Gb/sC17~C6140KM-1~3dBm≤-16dBmEMLLC/SC
FYPPD-**96-80BD10Gb/sC17~C6180KM-1~4dBm≤-23dBmEMLLC/SC

備注：CWDM型號欄**對應波長1270nm~1610nm，DWDM型號欄**對應通道C17(1563.86nm)~C61(1528.77nm)


10Gb/s SFP+單模單纖光模塊

型號速率工作波長傳輸距離發光功率接收靈敏度管芯接口
FYPPB-2396-10BD10Gb/sTx1270/Rx1330nm10KM-6~-0.5dBm≤-14.4dBmDFPLC
FYPPB-3296-10BD10Gb/sTx1330/Rx1270nm10KM-6~-0.5dBm≤-14.4dBmDFPLC
FYPPB-2396-40BD10Gb/sTx1270/Rx1330nm40KM-1~3dBm≤-16dBmDFPLC
FYPPB-3296-40BD10Gb/sTx1330/Rx1270nm40KM-1~3dBm≤-16dBmDFPLC
FYPPB-2396-60BD10Gb/sTx1270/Rx1330nm60KM0~5dBm≤-20dBmDFPLC
FYPPB-3296-60BD10Gb/sTx1330/Rx1270nm60KM0~5dBm≤-20dBmDFPLC
FYPPB-4596-80BD10Gb/sTx1490/Rx1550nm80KM-1~4dBm≤-23dBmEMLLC
FYPPB-5496-80BD10Gb/sTx1550/Rx1490nm80KM-1~4dBm≤-23dBmEMLLC
